1.Overal size L*W*H :2860*1810*1850mm
2.Distance between wheels F/R :1470*1400mm
3.Wheelbase:1900 mm
4.Front/REAR shock absorber :435mm /525mm
5.Driving type: F/R double motor,4WD
6.Passenger: 2
7.Vehicle :780kg
8. Minimum turning diameter≤9.5m
9.Minimum ground clearance mm ≥225
10.Max speed≥60km/h,(0-50km/h Acceleration time≤9s)
11.Max gradeability≥30%
12.Brake distance(m) 40km/h ≤20
13.Maximum range:(40km/h equal speed method, flat road surface) ≥100km
14.Rated voltage:72V
15.electric motor TYPE:AC asynchronous , Motor layout: FONT+REAR.
16.rated power:5kW
17.peak power:20kW ,Peak torque:250N.M
18.Rated voltage:72v
19.Rated turning speed:3000r/min
20.maximum turning speed:6500r/min
21.Rated power/capacity: 3.5 kW
22.Power Battery type: Lithium Ion Battery
23.The nominal voltage of the cell :3.2V
24.Monomer capacity:200 Ah
25.Total voltage of power battery pack :25.6V
26.Total capacity of power battery pack:200Ah

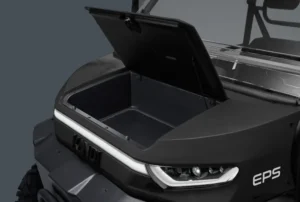

27.Steering type: EPS
28.Brake system Type :Hydraulic F/R disc brake
29.Parking brake type: Foot brake
30.Front /rear suspension type: Double independent suspension

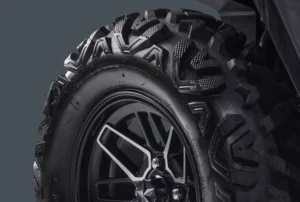

31.Type Spec.:AT26×9_14 / AT26×11_14
32.Tire rim: ALLOY RIM 14×6J / 14×8J

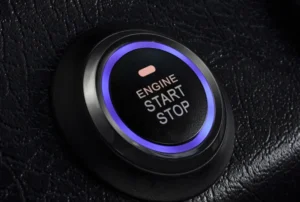

33.Remote control: remote unlock .

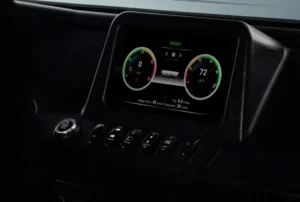

34.Car information system: PAD
35.MANAGEMENT SYSTEM:TBOX/BMS/BTMS
36.Safty system: seat belt/hazard warning/light switch/astern video/astern buzzer
37.Other configuration:3500lbs winch
38.color:Blue,Gray,Black,Sandy and Green.
